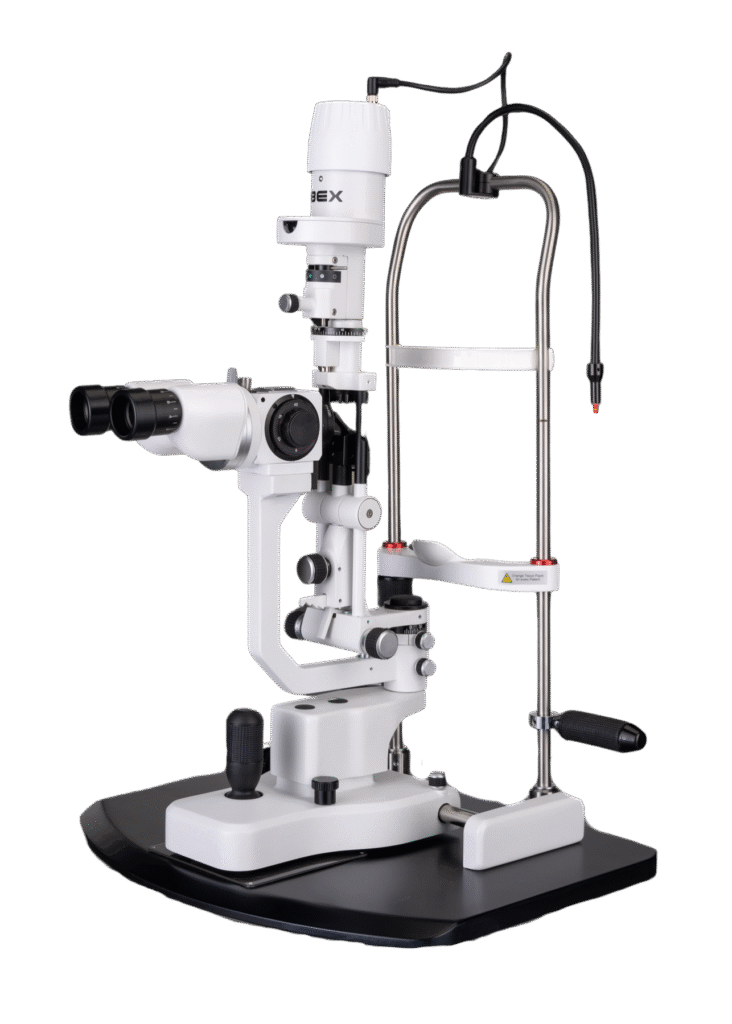

IBEX 5-Step Tower Slit Lamp

A Milestone in Slit Lamp Engineering

Inspired by the pursuit of excellence, we set out to redefine what a slit lamp could achieve—pushing boundaries in performance, reliability, and total cost of ownership. Designed without compromise, our slit lamp delivers unprecedented tissue observation, expansive fields of view, and a well-crafted mechanical system, setting a new standard in diagnostic precision.

At its core, the breakthrough 4300K LED illumination provides radiant, high-contrast anterior segment imaging, impressing even the most discerning eye care specialists. These advancements in tissue visualization, once considered unattainable with conventional tungsten and halogen illumination, are now effortless and precise.

We didn’t stop there….

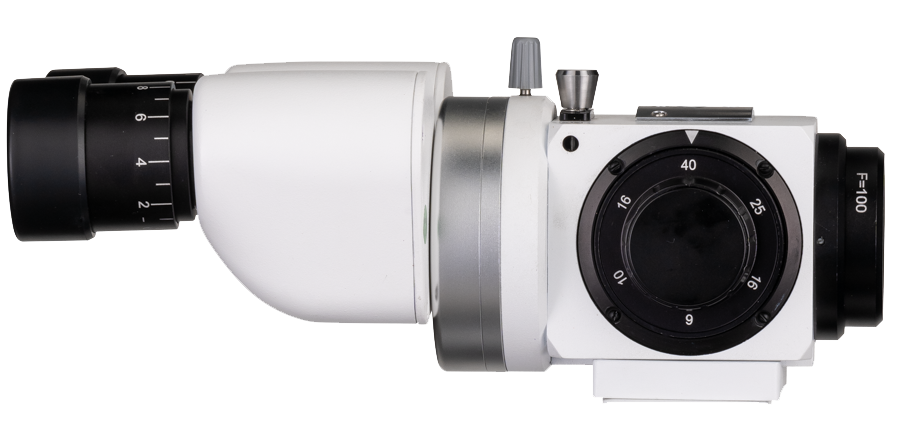

Advanced Optics: Pushing the Boundaries IBEX’s 5-Step Galilean optical system builds upon a traditional foundation while breaking conventions to deliver unparalleled clarity and precision. Featuring three sets of lenses within a compact turret and a rotating drum for instant magnification, it places five power levels at your fingertips.  This revolutionary optical design integrates wide-field eyepieces, prisms, and light-enhancing coatings, resulting in pure light transmission, exceptional clarity, and an expansive 43mm field of view.

Superb Optical Coatings

Optical coatings have undergone remarkable improvements in recent years, enhancing light reflection and transmission for superior performance. IBEX lenses fully embrace these innovations, undergoing meticulous refinements in coating composition, layer thickness, and refractive indices to achieve optimal balance. Through painstaking engineering, we’ve minimized light loss, optimized output, and increased brightness compared to standard illumination. The result? Robust, homogeneous luminance and crisp, edge-to-edge viewing, virtually free from chromatic aberration.

Breakthrough LED Illumination: Redefining Slit Lamp Observation

Born for high-end operating microscopes, IBEX’s 4300K LED illumination shatters the limitations of conventional slit lamp observation.  The homogeneous, radiant white light enhances tissue fluorescence, contrast, color rendering, depth of field, while reducing shadowing—vital for indirect illumination techniques.

With advanced ventilation and cutting-edge heat management materials, the IBEX LED operates consistently for 15,000–20,000 hours, virtually eliminating downtime due to spent illumination sources. Even more impressive, IBEX LED slit lamps reduce beam temperature and radiant energy by 80%–90% compared to tungsten and halogen illumination, prioritizing patient safety and comfort.

Yellow Filter Boosts Image Contrast After applying fluorescein and illuminating with cobalt-blue light, deploying the integrated drop-in/drop-out yellow barrier filter enhances visualization by significantly boosting image contrast.

Fine-Tuned Spectrum for Precision Viewing By optimizing irradiance within the 460–470nm and 570–580nm wavelengths, our illumination system achieves distinct peaks that enhance anterior chamber visualization while offering added versatility for fundus observation. The result? Sharper contrast, improved clarity, and a refined diagnostic experience, unlocking details once difficult to observe.

Helicoid Eyepieces & Telescoping Eye Cups

Designed for customized comfort and precision, our helicoid-style eyepieces allow for smooth diopter adjustment, operating independently of the eyecups so they can remain in the optimal position for your vision. For enhanced viewing flexibility, the telescoping eye cups provide 18mm of eye relief, ensuring users—with or without eyeglasses—experience the maximum field of view.

How It Works:

• Eyeglass wearers push the cups in for seamless optical alignment.
• Non-eyeglass users extend the cups outward for an optimized viewing experience.

Both adjustments ensure you see the full image with clarity, enhancing diagnostic precision without compromise.

Tower Design Versatility for Precision Illumination

IBEX’s tower illumination system offers a 5–20-degree vertical tilt, allowing clinicians to position the slit below horizontal for shadow reduction during indirect illumination and optimal oblique muscle visualization during gonioscopy. For added control and adaptability, a conveniently placed tower-mounted knob enables quick left or right slit decentration (+/- 5 degrees), allowing clinicians to subtly offset the tower for precise scleral illumination—enhancing diagnostic accuracy and imaging clarity.

Standard Features

• Magnifications 6x, 10x, 16x, 25x and 40x
• Slit Width 14mm (Continuous)
• Slit Length 14mm (Continuous)
• Slit Apertures 0.2, 1, 3, 4, 6, 10 and 14mm
• Slit Angles 0° – 180°
• Filters Cobalt Blue, Green (Red-Free), Heat-Absorbing and Diffusing

Industry First – IBEX Smart Leveling™ System

Leveling your slit lamp has never been easier. Whether dealing with sloped floors or bent slit lamp arms, IBEX Smart Leveling™ eliminates the hassle. Simply mount your IBEX slit lamp on your instrument stand as usual, then use the included hex key to adjust the leveling screws on the underside of the slit lamp table base. Standard on every IBEX slit lamp.

Experience IBEX Risk-Free with a 60-Day Test Drive

The best way to appreciate the precision and performance of an IBEX Slit Lamp is to put it to the test yourself. That’s why we offer an unprecedented 60-day Test Drive and Money-Back Guarantee—ensuring complete confidence in your investment.

 Since introducing IBEX Slit Lamps, over 99.9% of our customers have been impressed by the superior optics, reliability, and ease of use—and we’re certain you will too. Try it, explore its capabilities, and see the difference for yourself.

Total Cost of Ownership: Built to Last

From the very start, our goal was to deliver one of the most sophisticated slit lamps to ever enter the market. Reliability, durability, and outstanding performance define IBEX, ensuring years of precision diagnostics.

While upfront cost matters, we recognize that physicians consider multiple factors before making an investment—performance, dependability, warranty, ease of transaction, and trust in the manufacturer. With IBEX, clinicians benefit from cutting-edge technology while appreciating a far superior total cost of ownership.

Three-Year Comprehensive Warranty: IBEX Slit Lamps come with a 36-month warranty, covering faulty workmanship, materials, and factory assembly on a Return-To-Base (RTB) basis. All parts and services are included at no additional cost, with most repairs completed within 2–3 working days.

With a lifespan of 15,000–20,000 hours, the IBEX LED is classified as a non-consumable item, designed for consistent operation. In the unlikely event of LED failure, we provide replacement support during and beyond the warranty period. It takes around 5-minutes to change out the LED.

Free Shipping & Effortless Setup: Our lamps ship 95% pre-assembled,and arrive in a proprietary, easy-to-carry box, ensuring a quick, hassle-free installation. Set-up takes just 20 minutes. Quick Setup Guide is included.
